1、5MP 2K USB Camera Module
3、Product Sensor：HM5065(1/4'')
4、Maximum Resolution, Format & Frame Rate ：2592*1944 MJPEG 15FPS
2560*1440 MJPEG 15FPS
5、Maximum Viewing Angle：105° distortion-free
6、Sample equipped with test cable:4P-2.0MM-50CM
Key Specifications:
Module No. | HBVCAM-5M1947 V22 |
Module Size | 38x38x16.3±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1000 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | HM5065 (1/4 ) |
Maximum resolution | 2592*1944 |
Pixel Size | / |
Maximum Image Transfer Rate | MJPG 2592x1944 15FPS MJPG 2560x1440 15FPS MJPG 1280x960 30FPS MJPG 1280x720 30FPS MJPG 640x480 30FPS |
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | MJPG |
Microphone | NO |
Lens Construction | 4E |
F/No | 2.2 |
EFL | 2.1 mm |
FOV | D=98° |
TV Distortion | ＜2% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

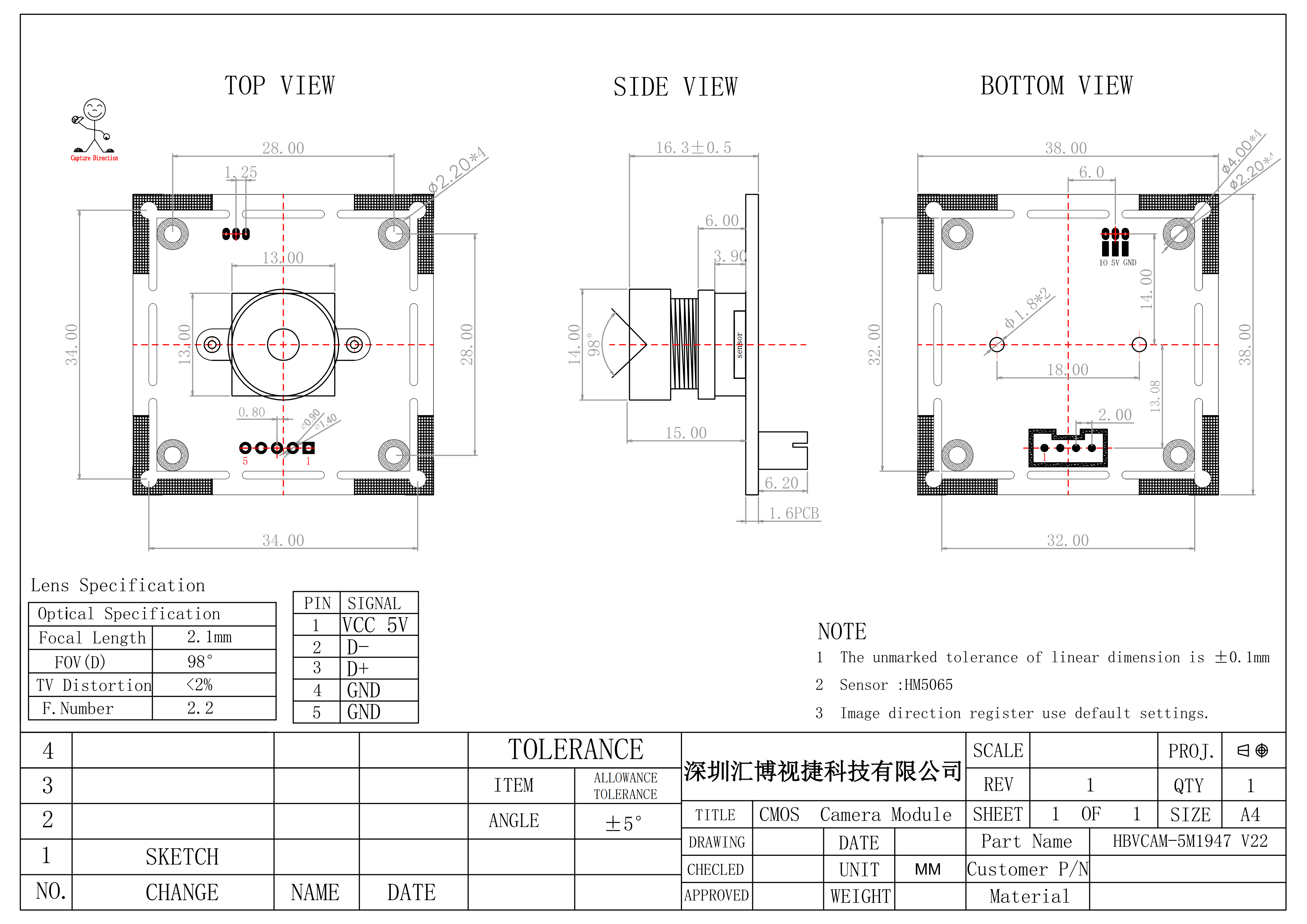

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
